AX09S – QuSpot for RUTX09

116,16 VAT inc. - 96,00 VAT exc.

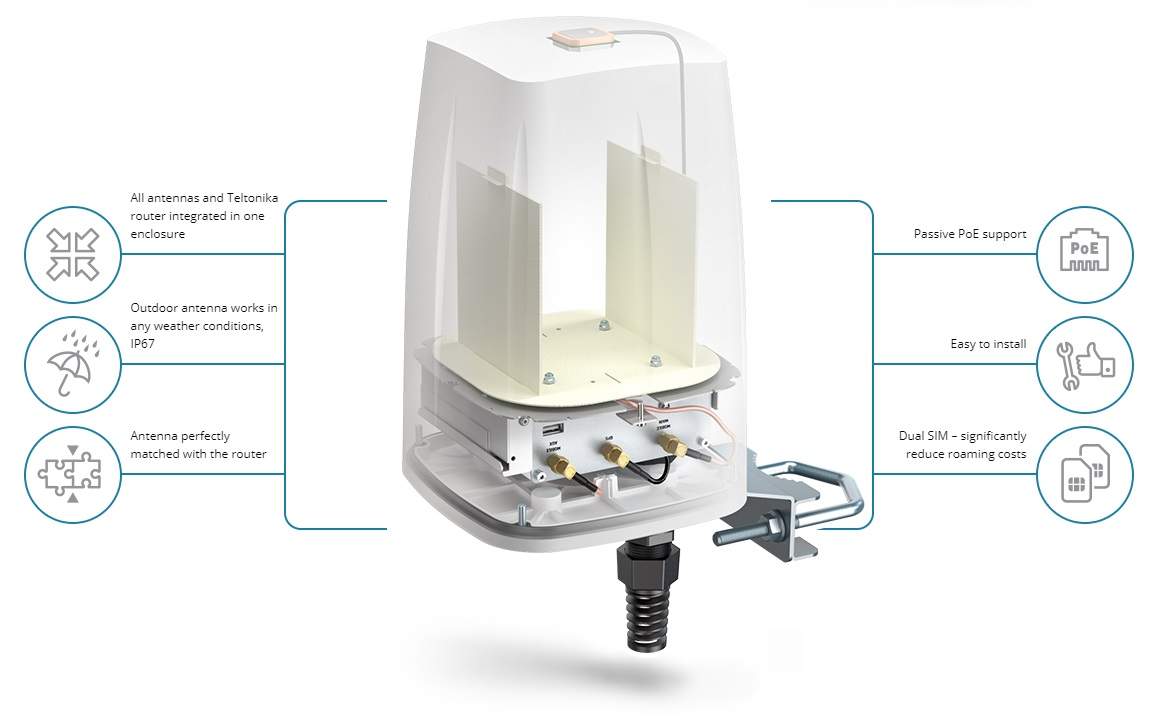

Integrated multi-band LTE omni antennas + WiFi omni antennas + place to install Teltonika RUT950 or 900 (All-in-one)

1 in stock (can be backordered)

QuWireless

Additional information

LTE ANTENNA SPECS

FREQUENCY Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz GAIN 0.694 – 0.96 GHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.2 – 2.7 GHz : 4 dBi VSWR <1.60, max <2.00 BEAMWIDTH 360°/35° ±5° POLARIZATION Vertical IMPEDANCE 50 Ω

WI-FI ANTENNA SPECS

FREQUENCY 2.40 – 2.50 GHz 4.70 – 6.00 GHz GAIN 2.40 – 2.50 GHz : 6 dBi 4.70 – 6.00 GHz : 7 dBi VSWR <1.70, max <2.00 BEAMWIDTH 360°/25° ±5° POLARIZATION Vertical IMPEDANCE 50 Ω

MECHANICAL SPECS

MATERIALS ABS, aluminum, PTFE INGRESS PROTECTION IP67 DIMENSIONS 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch WEIGHT 1.5 kg 3.31 lbs OPERATING TEMPERATURE From -40°C to 75°C From -40°F to 167°F
