AX11M – QuMax for Teltonika RUTX11

160,93 VAT inc. - 133,00 VAT exc.

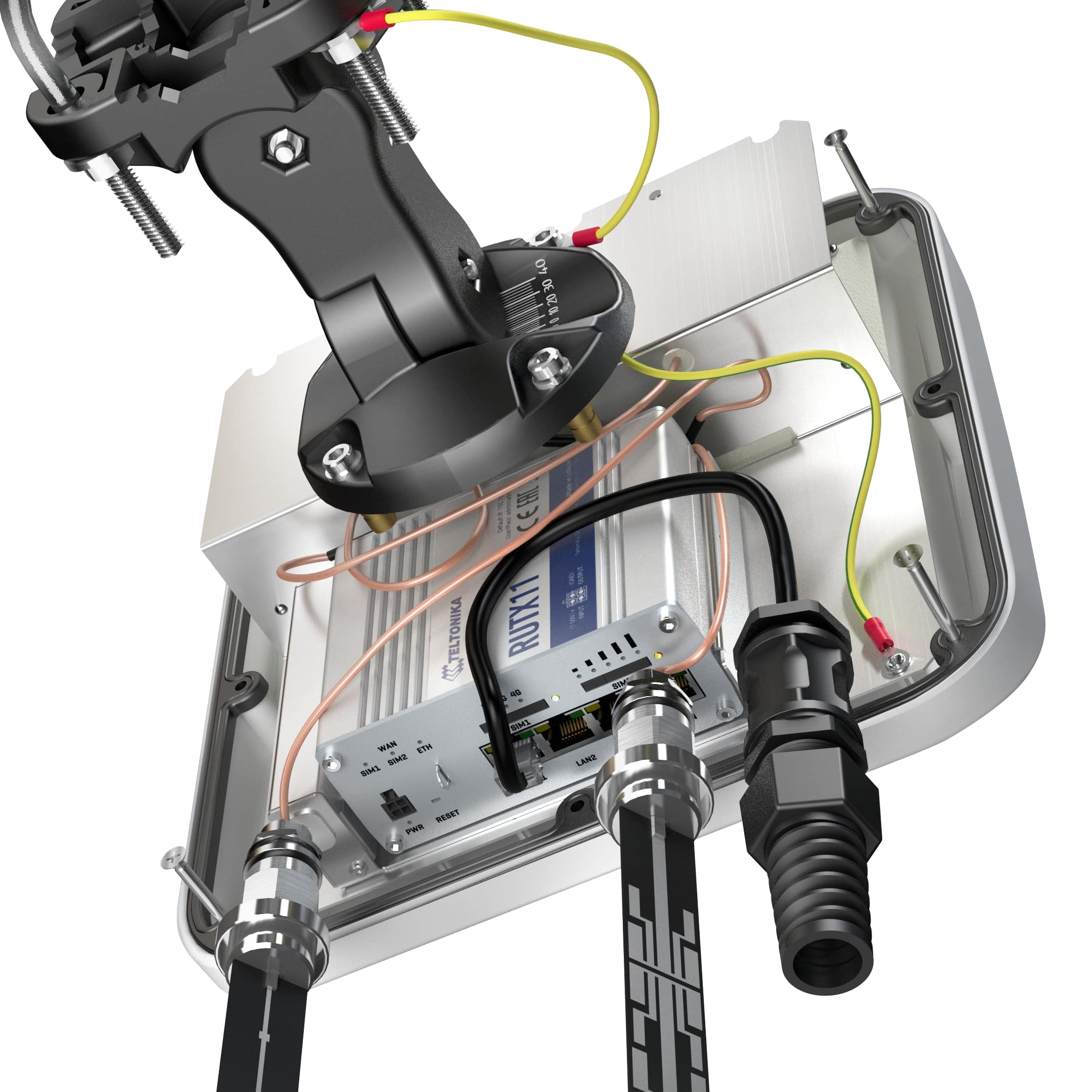

Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUTX11 (All-in-one)

Out of stock

QuWireless

Additional information

LTE ANTENNA SPECS

FREQUENCY Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz GAIN 0.694 – 0.96 GHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.2 – 2.7 GHz : 4 dBi VSWR <1.60, max <2.00 BEAMWIDTH 360°/35° ±5° POLARIZATION Vertical IMPEDANCE 50 Ω

WI-FI ANTENNA SPECS

FREQUENCY 2.40 – 2.50 GHz 4.70 – 6.00 GHz GAIN 2.40 – 2.50 GHz : 6 dBi 4.70 – 6.00 GHz : 7 dBi VSWR <1.70, max <2.00 BEAMWIDTH 360°/25° ±5° POLARIZATION Vertical IMPEDANCE 50 Ω

MECHANICAL SPECS

MATERIALS ABS, aluminum, PTFE INGRESS PROTECTION IP67 DIMENSIONS 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch WEIGHT 1.5 kg 3.31 lbs OPERATING TEMPERATURE From -40°C to 75°C From -40°F to 167°F
